PowerStack

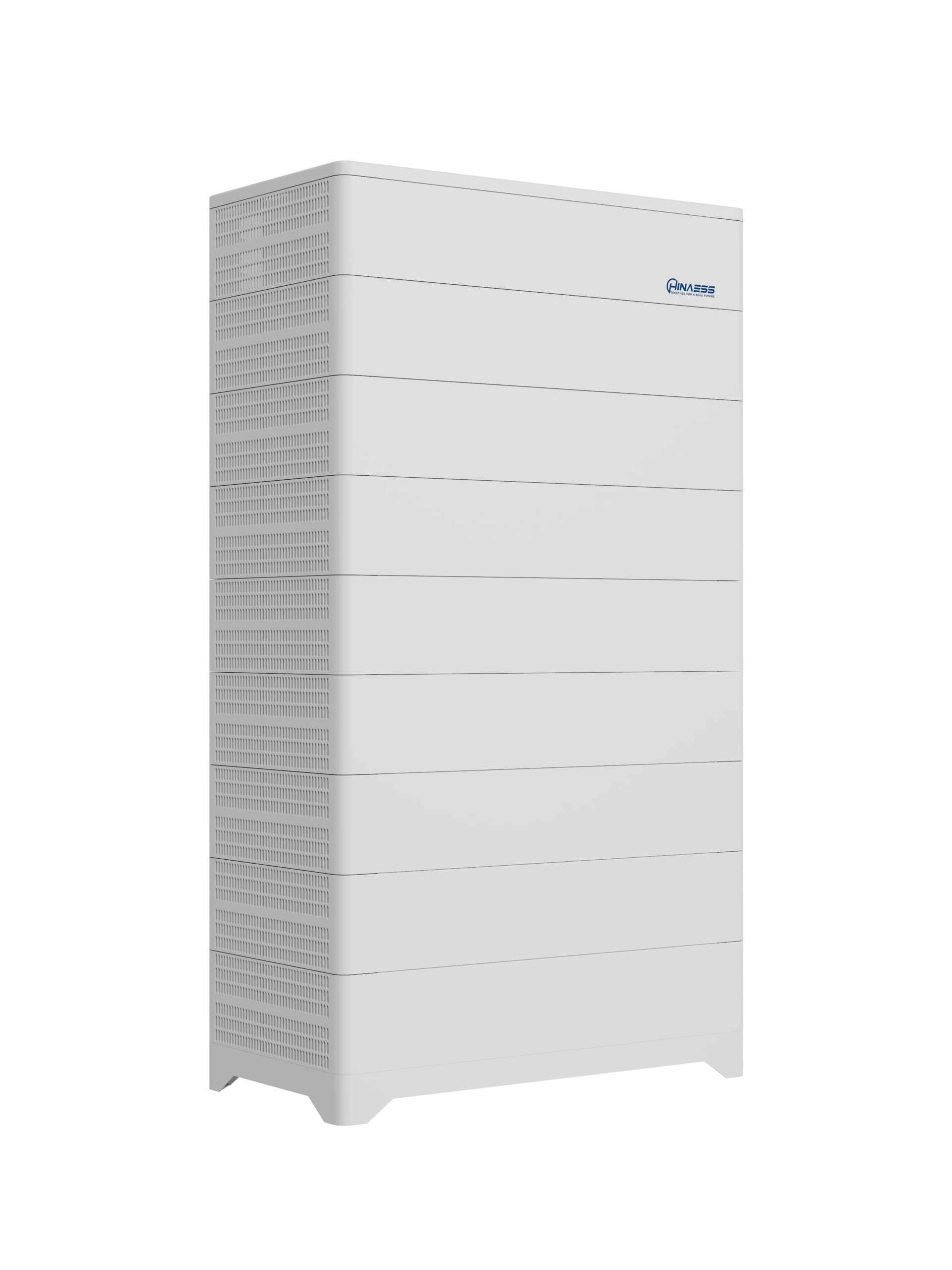

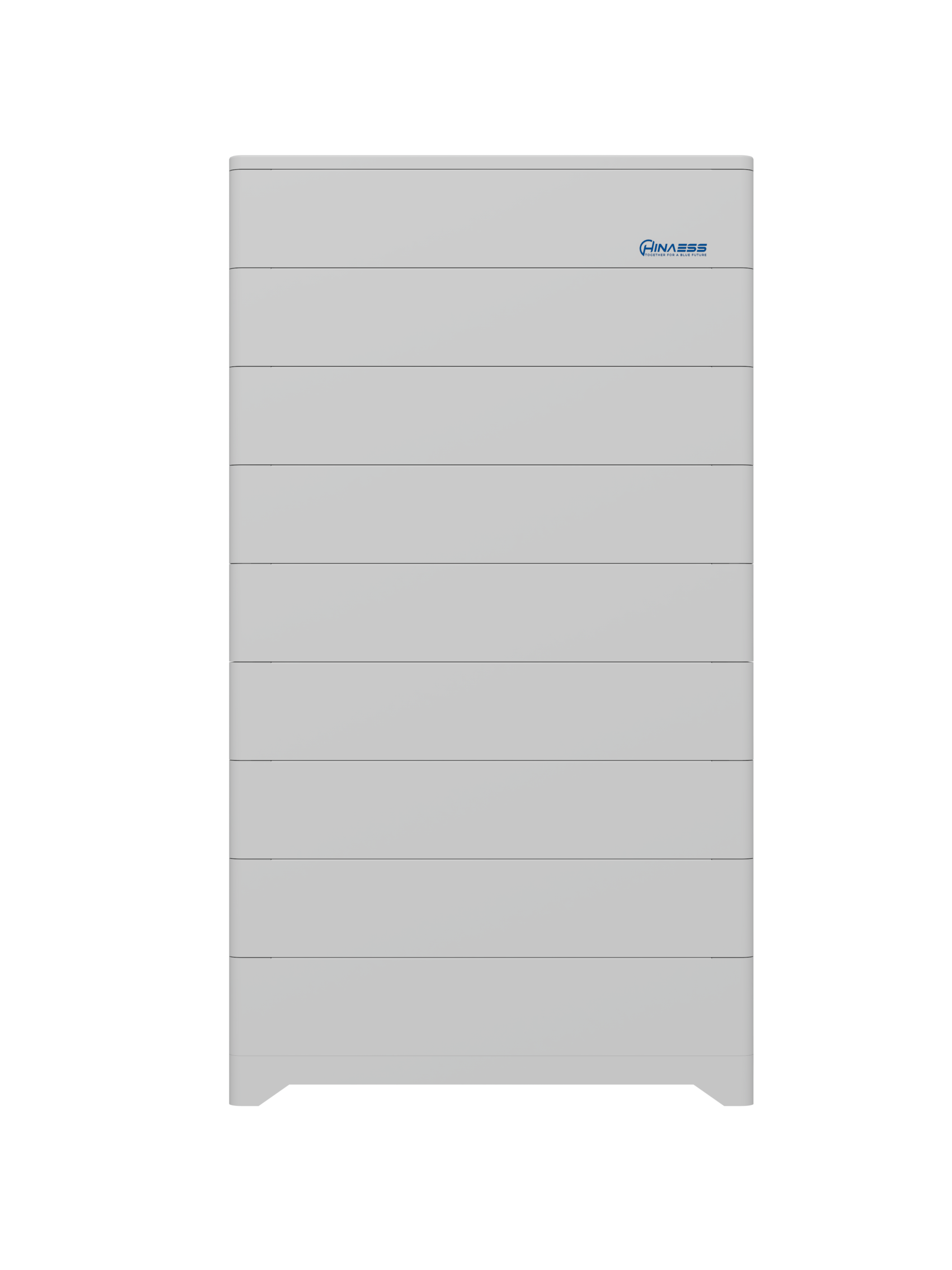

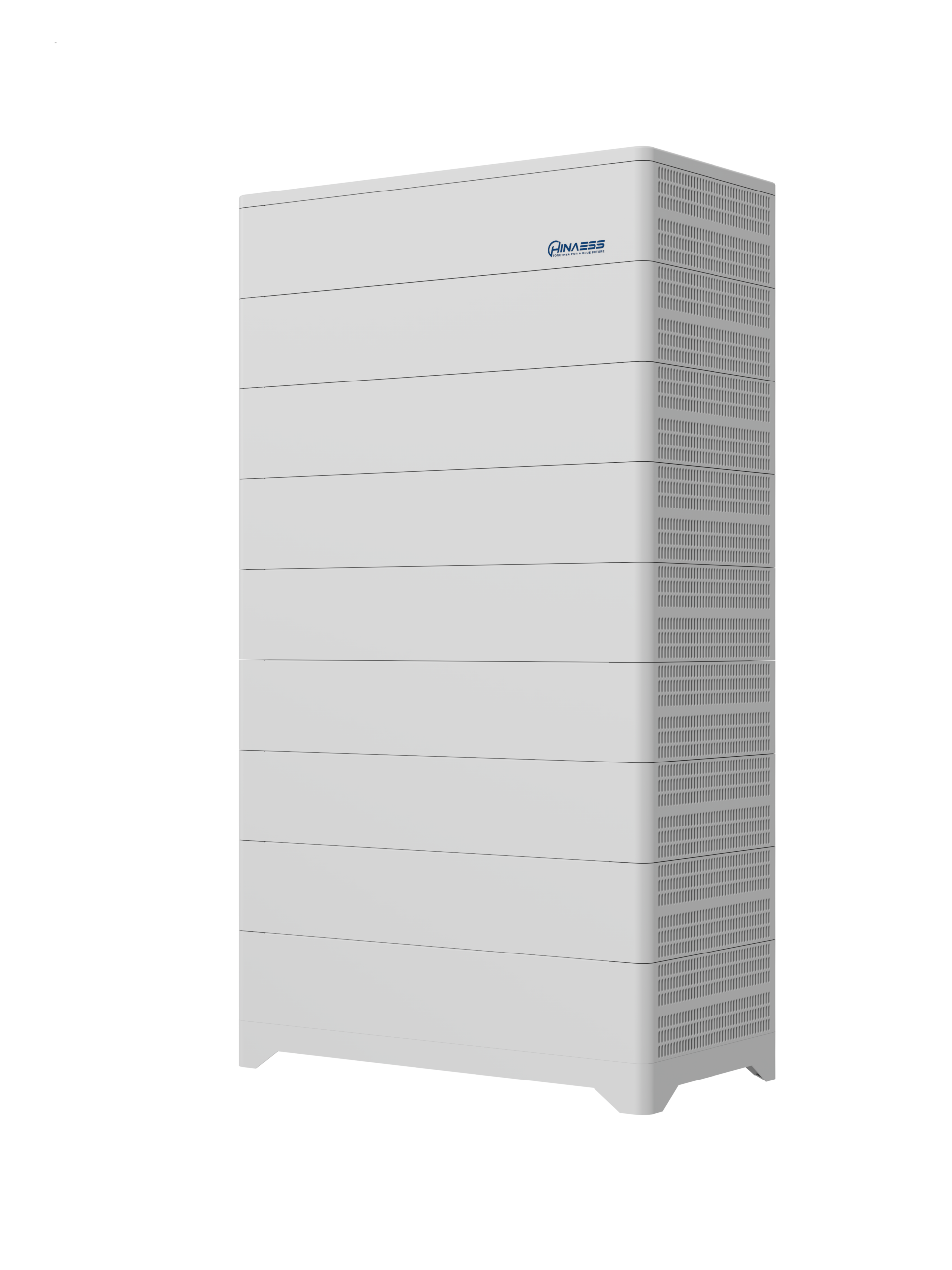

The HINAESS PowerStack is a high-performance, scalable energy storage solution designed for both residential and commercial applications. This innovative battery system is built using ultra-safe LFP (Lithium Iron Phosphate) materials and offers exceptional efficiency and reliability. The PowerStack is ideal for ensuring continuous power supply and optimizing energy usage in solar power systems. Its flexible design allows for easy integration with a wide range of inverters and supports remote upgrades for ongoing performance optimization.
The HINAESS PowerStack offers unmatched flexibility and safety with its advanced features and robust design. Its high efficiency and scalability make it an excellent choice for those looking to enhance their energy storage capabilities and ensure a reliable power supply.
Specifications
- Scalable Connection: 2 to 8 pcs series per stack, up to 20 stack parallel
- Dimension (WxDxH):
- 736x382x577mm
- 735mm
- 893mm
- 1051mm
- 1209mm
- 1367mm
- 1525mm
- Weight:
- 110Kg
- 155Kg
- 200Kg
- 245Kg
- 290Kg
- 335Kg
- 380Kg
- Battery Module Nominal Voltage: 70.4V
- Battery Module Nominal Capacity: 72Ah
- Battery Module Nominal Energy: 5.069kWh
- Battery Module Voltage Range: 61.6V~80.3V
- Protection: IP65
- Recommend Charge/Discharge Current: 36A, 0.5C per battery module
- Max Continuous Charge/Discharge Current: 50.4A, 0.7C per battery module
- Max Continuous Charge/Discharge Power: 3.548KW per battery module
- Battery Stack Nominal Energy:
- 10kWh
- 15kWh
- 20kWh
- 25kWh
- 30kWh
- 35kWh
- 40kWh
- Max. Series Number per Cluster: 8 series
- Cluster Parallel: Up to 20 clusters, without extra unit needed
- Charging/Discharging Temperature Range: 0 ℃ ~ +55 ℃, -20 ℃ ~ +55 ℃
- Recommend Storage Temperature: -10 ℃ ~ +35 ℃ (Max range -30 ℃ ~ +55 ℃)
- Recommend Storage Humidity: 10% RH~90% RH
Additional Features
- Warranty: 10 years, 6000 cycles (@ 25℃, 90% DOD, 0.5C testing condition)
- Remote Maintenance: Flexible remote upgrade, original firmware backup to prevent upgrade failure
- Certification: CE, UN38.3, IEC62619
