PowerGem
Battery
About
PowerGem

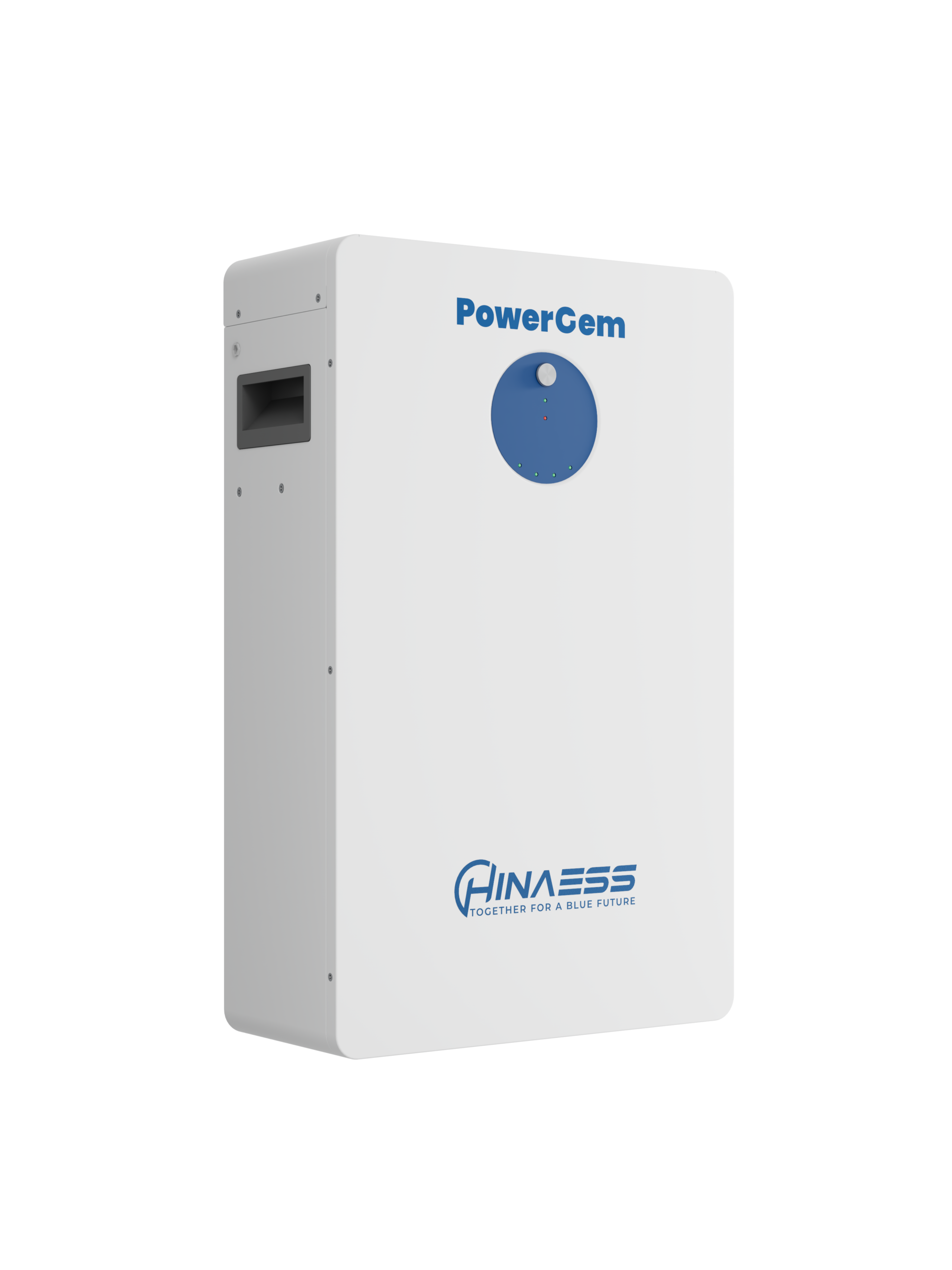

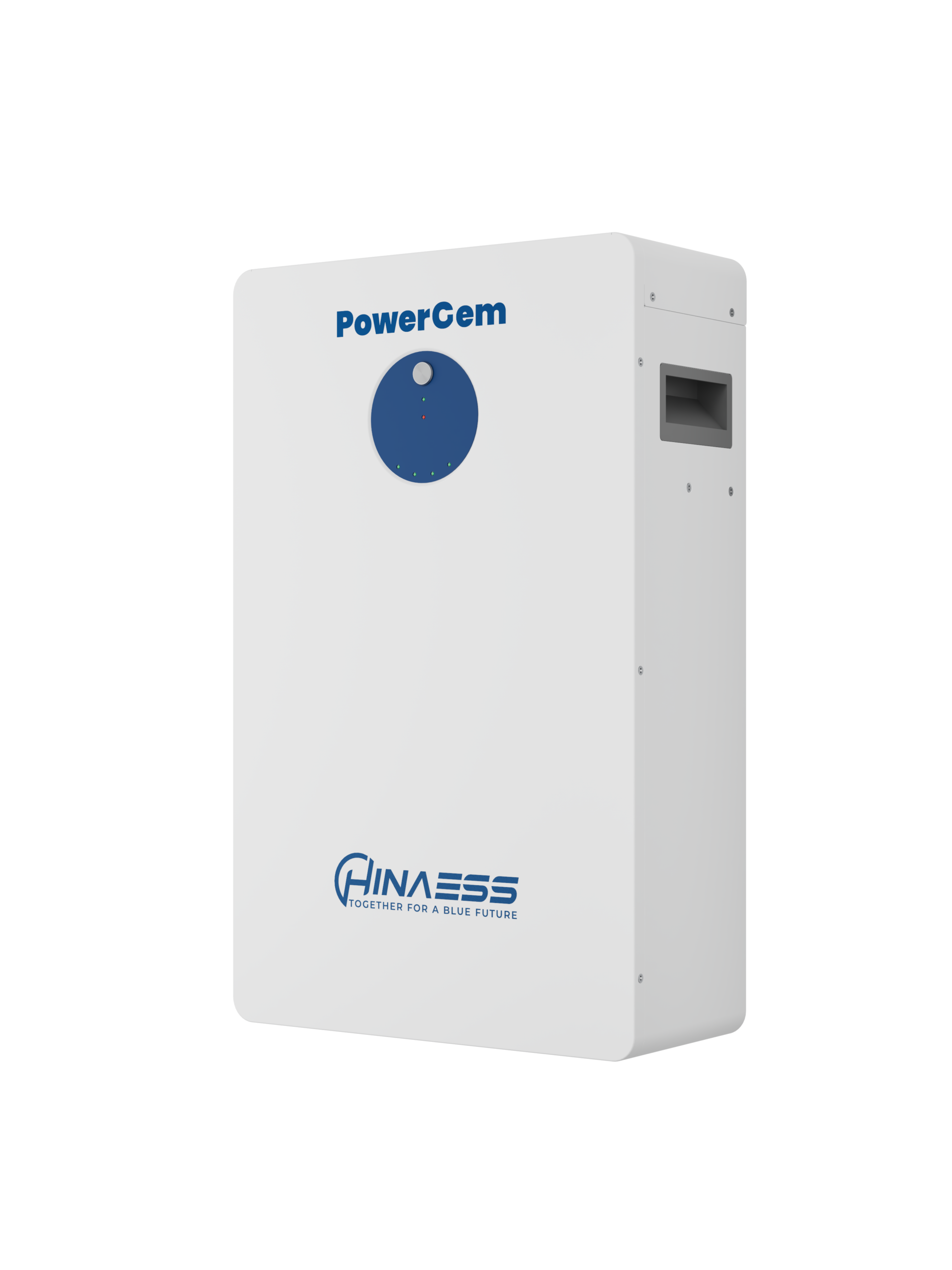

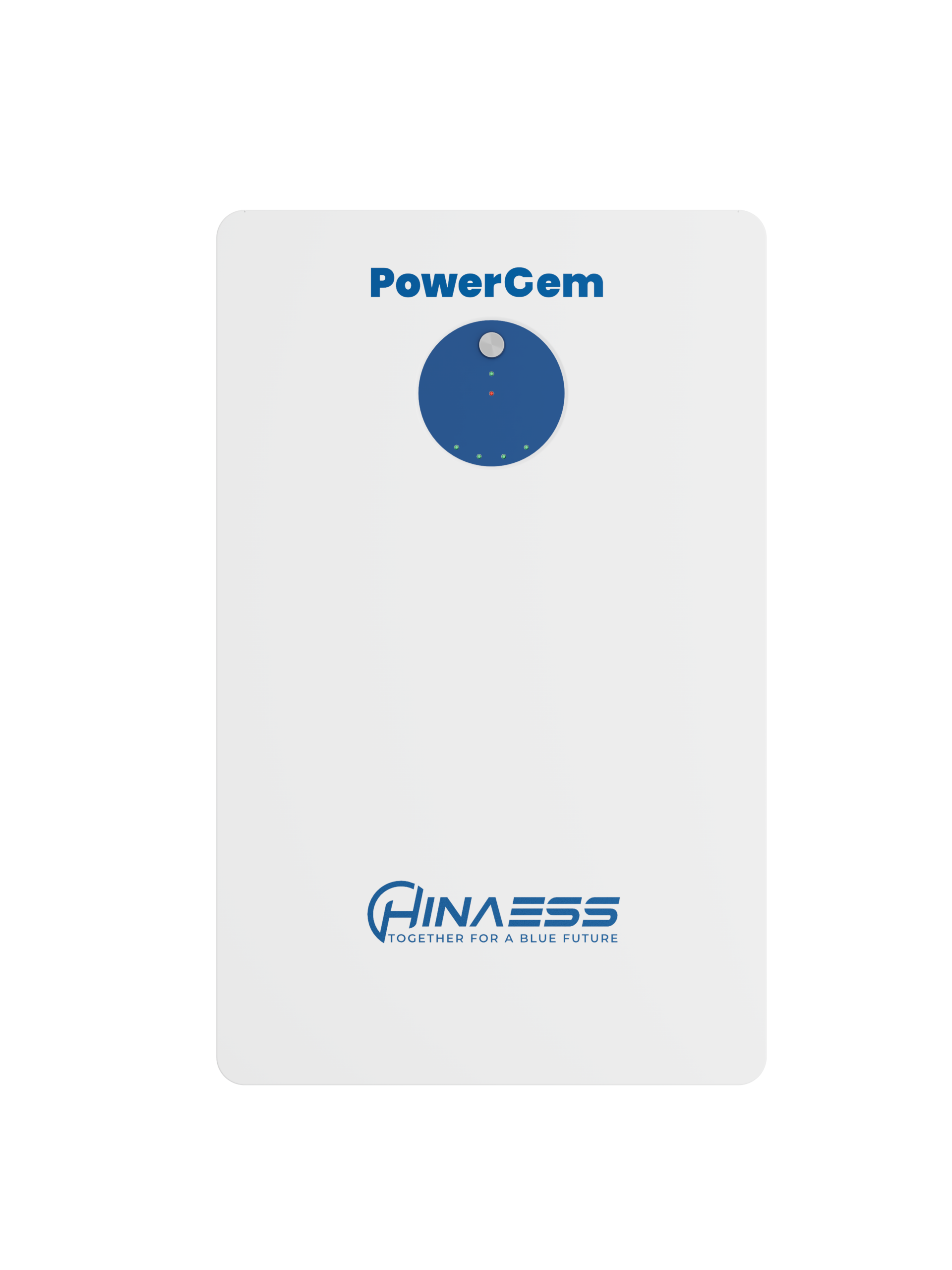

The HINAESS PowerGem Battery is a high-capacity energy storage solution designed to enhance both residential and commercial solar energy systems. Featuring a sleek and elegant enclosure, the PowerGem offers versatile installation options including floor-standing and wall-mounting. This robust battery utilizes ultra-safe LFP (Lithium Iron Phosphate) materials and supports parallel connection of up to 32 units without the need for extra devices. It ensures reliable power supply and efficient energy management through its smart Battery Management System (BMS) and comprehensive protection features.
The HINAESS PowerGem Battery is designed for high performance and long-lasting reliability, making it an ideal choice for optimizing energy storage in solar power systems. Its compatibility with a wide range of inverters and easy installation process make it a versatile solution for various energy needs.
Specifications
General Specifications
- Model: PowerGem
- Cell Type: LFP (Lithium Iron Phosphate)
- Rated Power: 5.12 kWh
- Rated Capacity: 100 Ah
- Rated Voltage: 51.2 V
- Charge Voltage: 56.5 V
- Max Charge/Discharge Current: 100 A
- Parallel: Up to 32 units parallelable without extra device needed; slave battery drops offline or comes back alive without affecting system running
- Discharge Peak Current: 105 A / 15s, 120 A / 0.5s
- IP Level: IP20
- Dimensions (WxDxH): 640428166 mm
- Weight: 58 kg
- Communication: CAN/RS485
- Compatible Inverter: Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Solark, SRNE, Must
- Warranty: 10 years, 6000 cycles (@ 25°C, 90% DOD, 0.5C testing condition)
- Humidity: 5%~85% RH (No condensation)
- Working Temperature: -20°C ~ +55°C
- Storage Temperature: -10°C ~ +35°C
Additional Features
- Remote Maintenance: Flexible remote upgrade, remote monitoring with original firmware backup to prevent upgrade failure
- Protection: Overcharge/discharge/current/voltage/temperature protection, short circuit protection, reverse connection protection, stronger active balance, low SOC protection
- Certification: CE, UN38.3, IEC62619
