C14

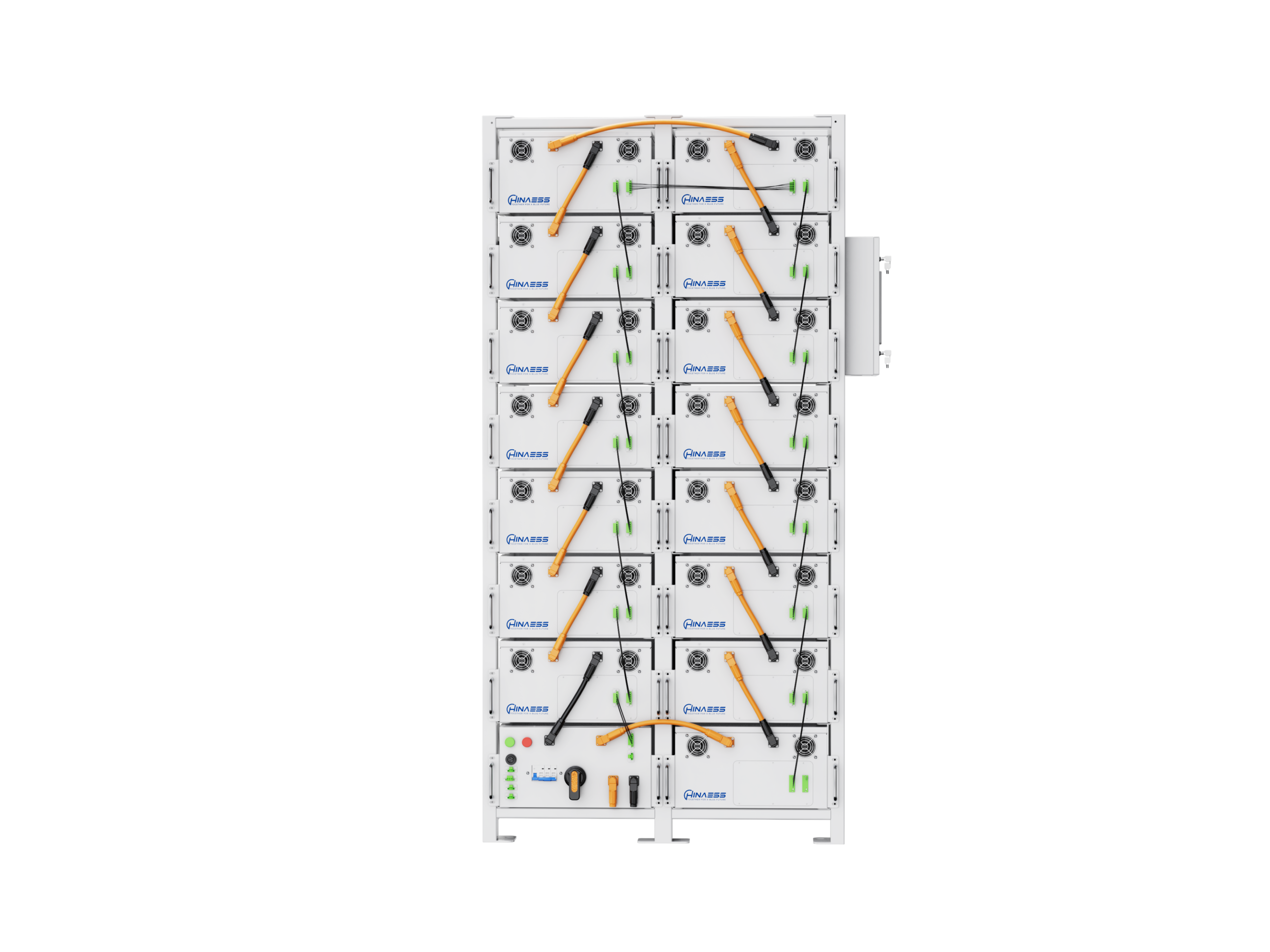

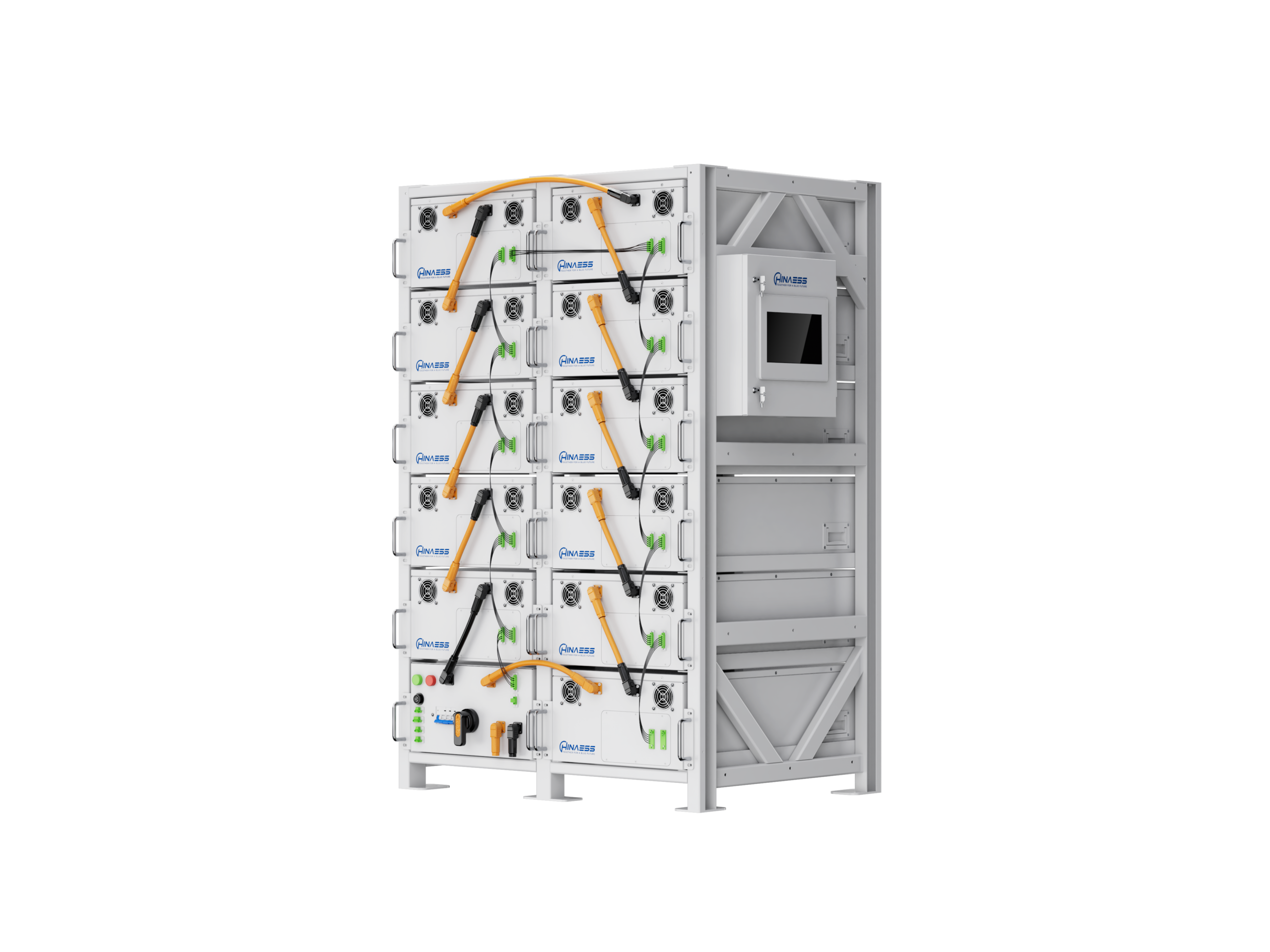

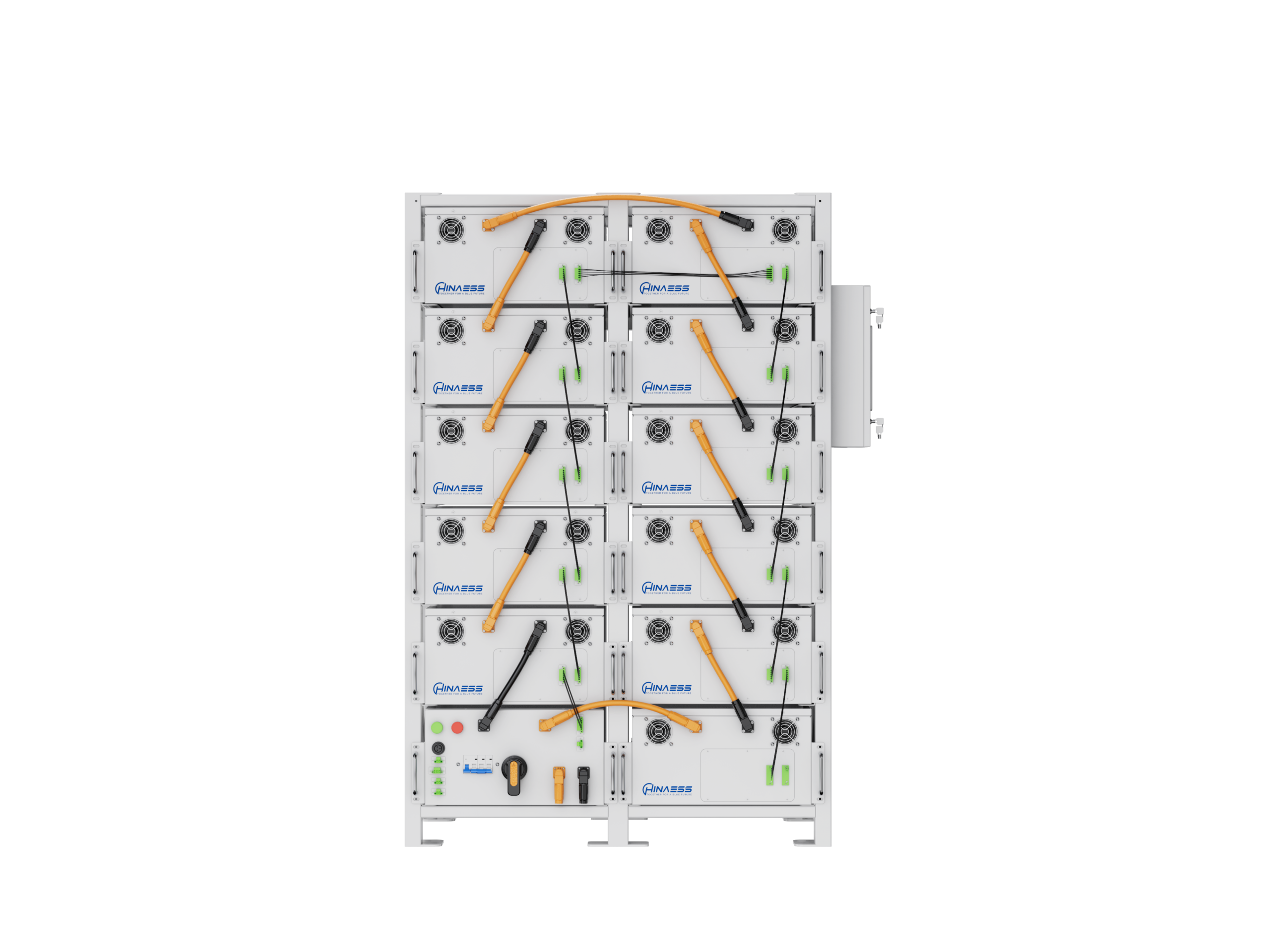

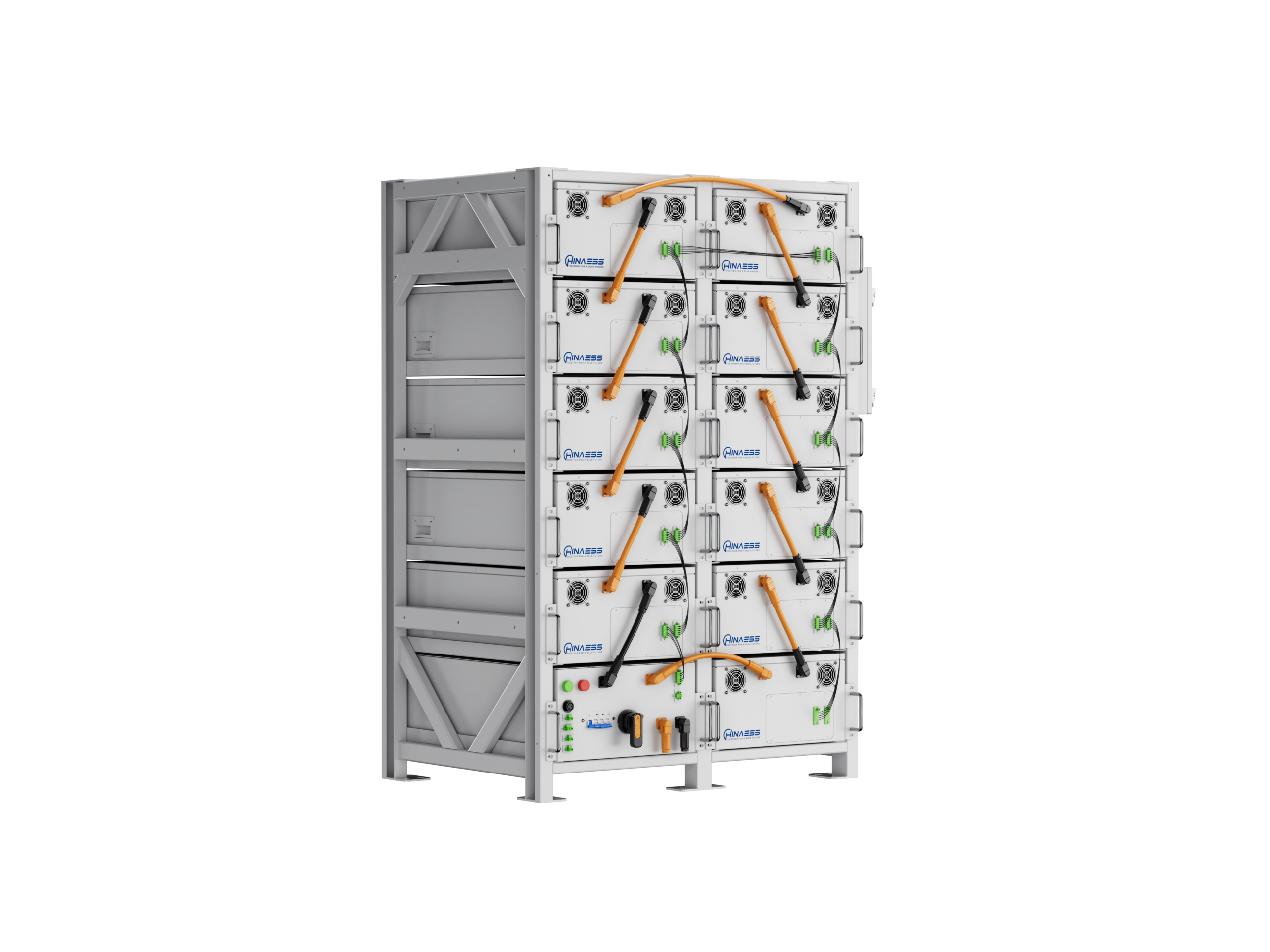

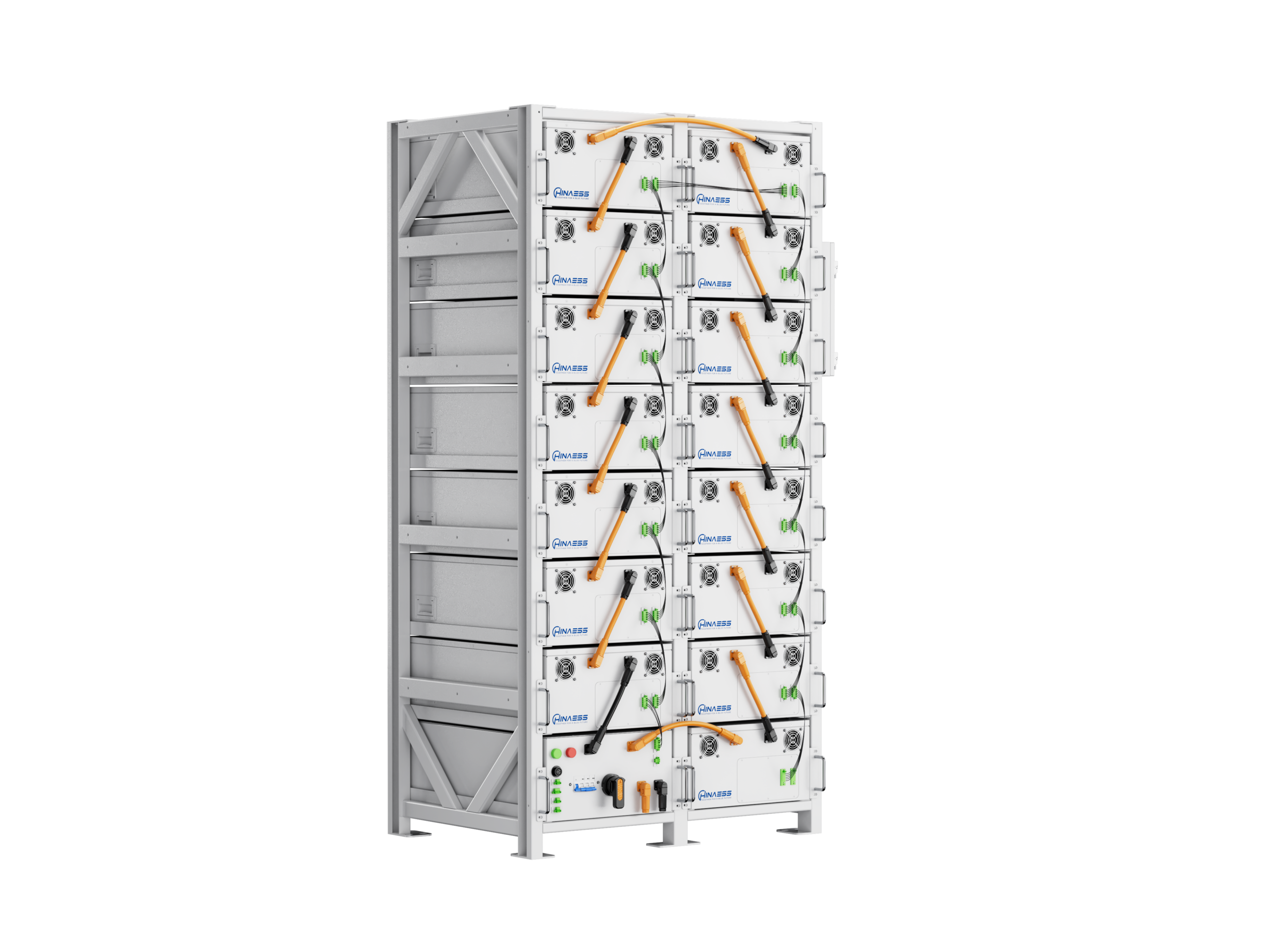

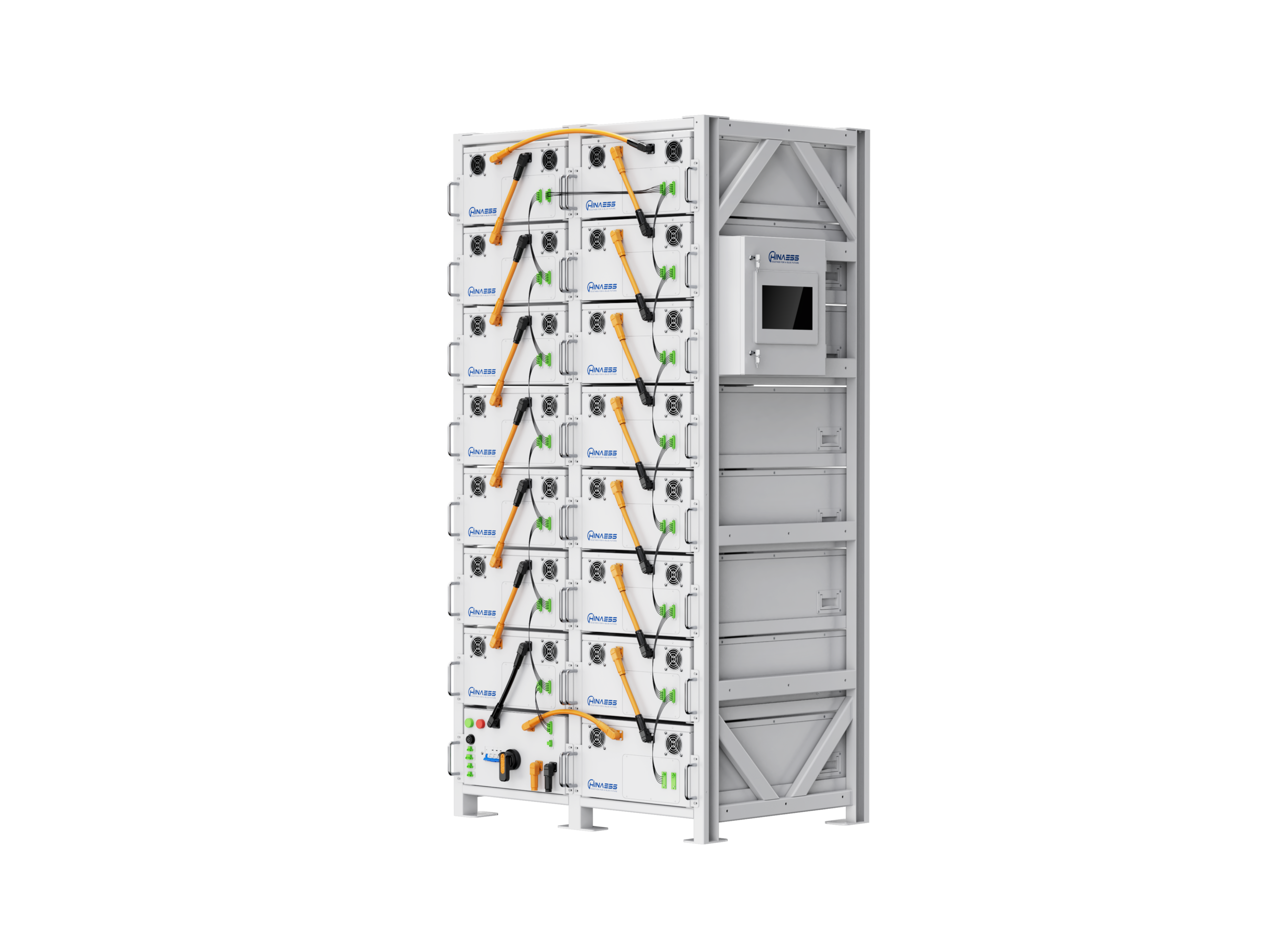

C14 is a high-voltage energy storage battery designed for commercial and industrial applications requiring reliable performance, flexible expansion, and efficient energy management. With a 14.34kWh modular capacity, it provides a practical solution for larger-scale energy storage projects.

The high-voltage architecture helps reduce system current and improve energy efficiency, while the modular design allows flexible system configuration according to different project requirements. Supporting expansion up to 215kWh, C14 enables scalable solutions for commercial backup power, solar self-consumption, and energy cost optimization.

Designed for versatile deployment, C14 supports indoor installation with an IP20 protection rating and can be integrated into an optional outdoor cabinet solution for enhanced environmental protection. Equipped with intelligent BMS management, multiple safety protections, and wide inverter compatibility, C14 delivers reliable and efficient energy storage for commercial applications.

Specifications

General Specifications

  • Model: C14
  • Cell Type: LFP (Lithium Iron Phosphate)
  • Rated Power: 14.336 kWh
  • Rated Capacity: 280 Ah
  • Voltage Range: 46.4 ~ 56.8 V
  • Charge Voltage: 56.5 V
  • Max Charge/Discharge Current: 140 A
  • IP Level: IP20
  • Dimensions (WxDxH): 504*781*236 mm
  • Weight: 110 kg
  • Communication: CAN
  • Warranty: 10 years, 8000 cycles.


Download the C14 User Manual
