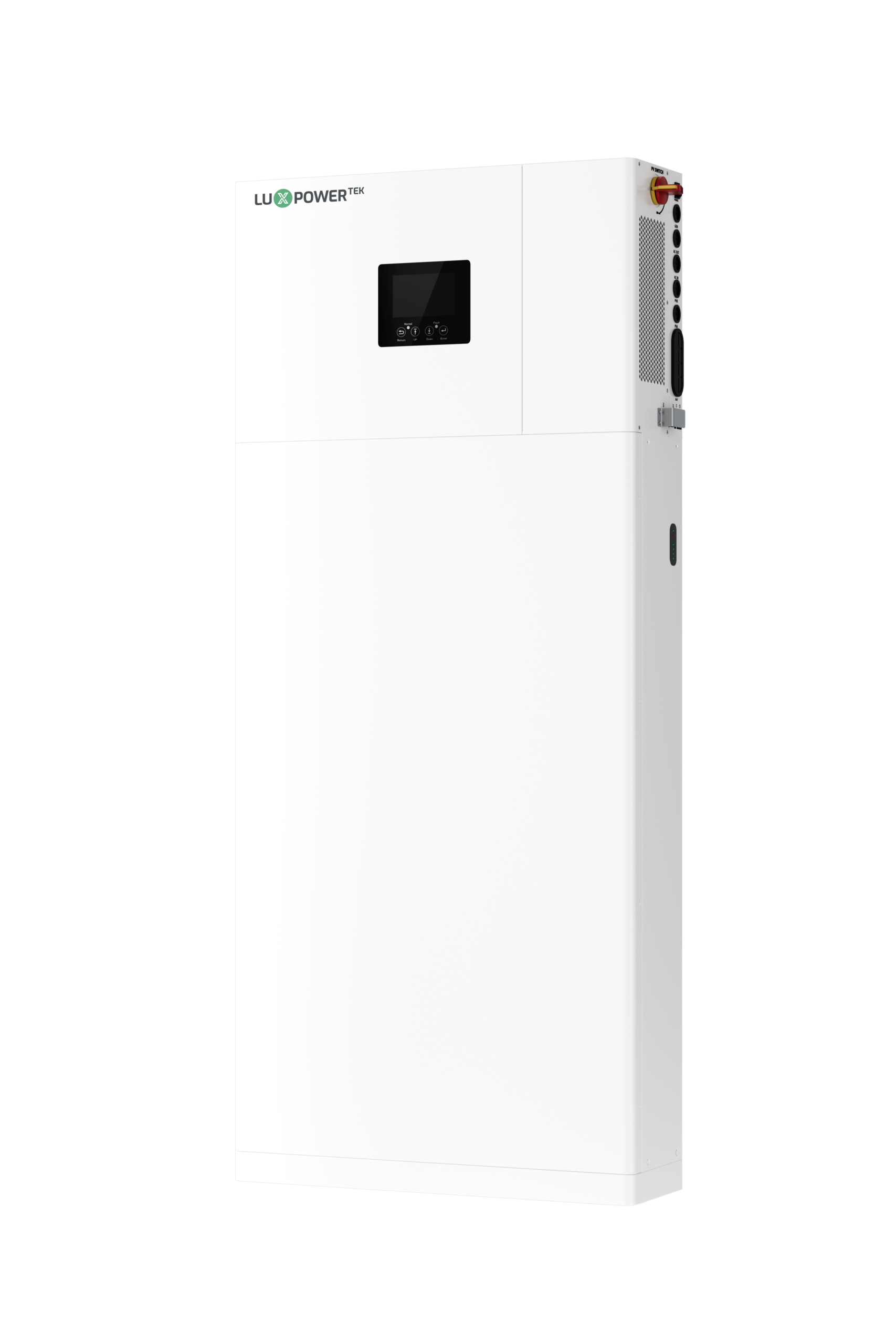

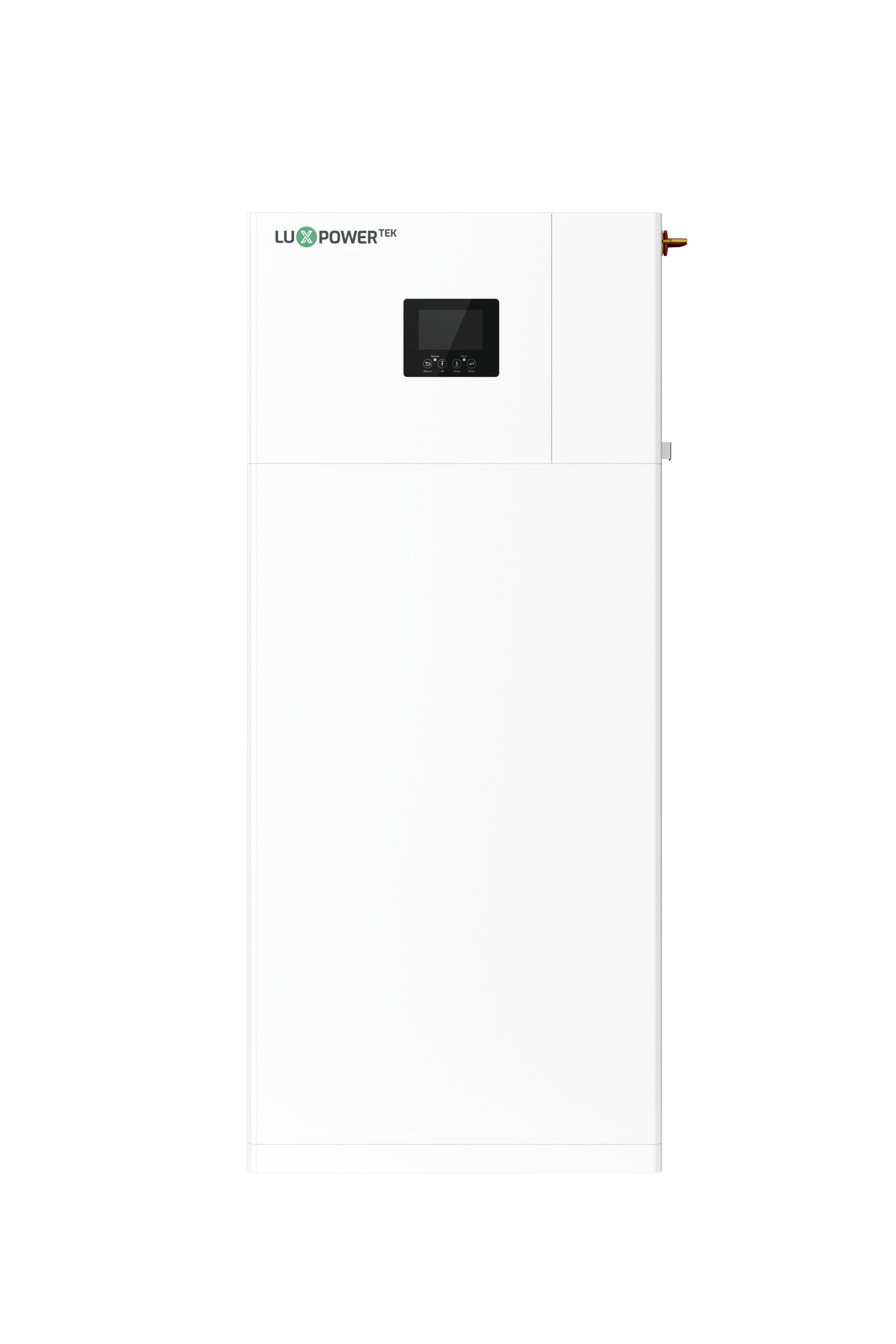

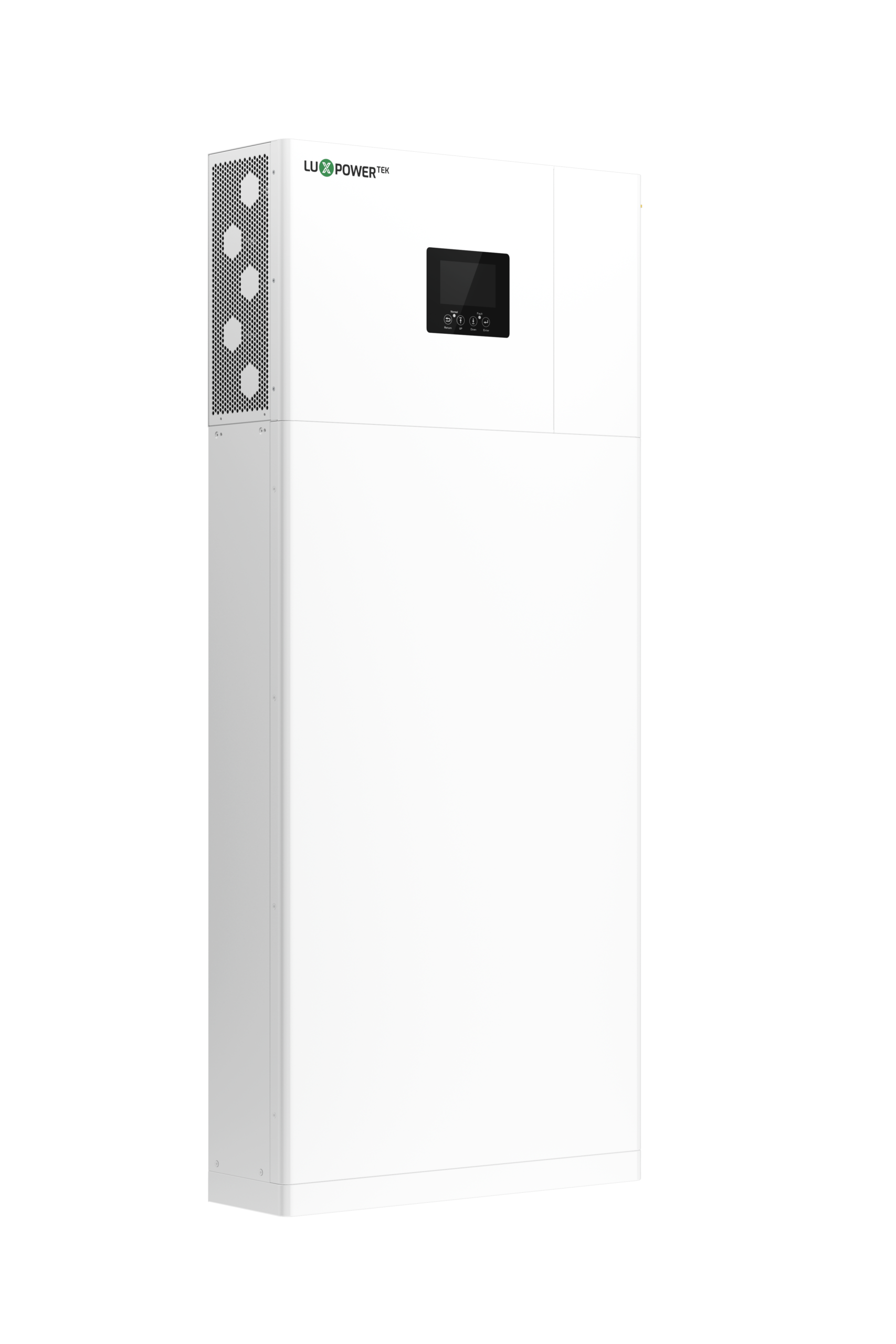

Eco Beast Pro
The LuxpowerTek Eco Beast Pro is an all-in-one energy storage system designed for residential homes, commercial buildings, and off-grid applications requiring reliable, scalable backup power.
With a simplified inverter-to-battery interface, the system minimizes maintenance requirements, improves long-term reliability, and helps lower the Levelized Cost of Energy (LCOE) throughout its lifecycle. Available with 10kWh (205Ah) and 15kWh (300Ah) battery options, Eco Beast Pro provides flexible energy storage solutions to meet different application requirements.
Designed to grow with evolving energy needs, the system supports parallel operation of up to 16 units, delivering up to 104kW of output power and 240kWh of energy storage. It is an ideal solution for large homes, clinics, schools, farms, commercial facilities, and small industrial sites.
Specifications
Input (PV DC)
- Max. PV Array Power: 9600W (4800/4800)
- Rated PV Input Voltage: 320V
- Number of Independent MPPT Inputs: 2
- Max PV Input Voltage: 500V
- MPPT Voltage Range: 120~400V
- Start-up Voltage: 100V
- Max. PV Input Current per MPPT: 17/17A
- Max. PV Short-circuit Current Input per MPPT: 25/25A
- Max. PV Charging Current: 140A
battery MoDULE: BEAST 10 / BEAST 15
- Battery Module Voltage: 45.6-58.4V / 38.4-60V
- Number of Modules per Inverter: 1
- Battery Energy: 105kWh / 15kWh
- Rated Voltage: 51.2V
- Rated Capacity: 205 / 300
- Battery Type: Lithium-Ion
- Max. Discharge Current: 140A
- Max. Charging Current: 140A
- Battery Module Weight: TBD / 98kg
- Battery Module Dimension (WxHxD): 580x950x175mm
AC INPUT
- Rated Input Voltage: 230V
- Rated Input Frequency: 50/60Hz
- Max. AC Input Current: 45A
- Max. AC Input Power: 9000W
- Max. AC Charging Current: 140A
- Rated AC Current of Bypass Relays: 40A
AC OUTPUT (BACKUP)
- Output Voltage Waveform: Pure Sine Wave
- Output Voltage Regulation: 208/220/230/240 +/- 5%
- Output Frequency: 50/60Hz
- Rated Output Power: 6500W
- Rated Output Current: 28.3A
- Peak Efficiency: 93%
- Overload Protection: 5s@≥150% load; 10s@110%~150% load
- Surge Power: 2 × rated power for 5s
- Switching Time: <7ms@Single; <20ms@Parallel
Efficiency
- Max. Efficiency: 93%
- Max. Charge Efficiency: 93%
- Max. Discharge Efficiency: 93%
Protection
- Grid Monitoring: Yes
- AC Surge Protection Type III: Yes
General
- Dimensions (WxHxD): 580x425x175mm / 22.8×16.7×6.89 inches
- Weight: 16.5kg / 36.4lbs
- Ingress Protection Rating: IP20
- Humidity: 5% to 95% Relative Humidity (Non-condensing)
- Operating Environment Temperature Range: 0~50°C
- Storage Temperature Range: -15~60°C
- Display & Communication Interface: LCD + LED, RS485, Wifi,CAN
- Warranty: 3 years (Inverter Module); 5 years (Battery Module)
- Cooling Method: Smart Cooling
- Topology: Transformer-less
- Altitude: 2000m
- Noise Emission (typical): <50dB
- Standards & certification: IEC 62109-1, IEC 61000, IEC62040, IEC62109, NRS 097-2-1
Download the Eco Beast Pro User Manual and Datasheet
